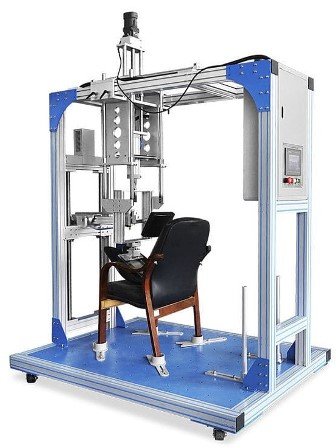

Chair Seat and Back Testing Machine

Sofa Seat and Back Testing Machine is to simulate normal functional use to determine the strength of the sofa structure by applying to various parts with loads or forces. Using certain shape and load modules, with specific form, frequency, respectively, repeating load seat, back and armrest. Each point have force sensor to show the pressure.
Main Technical Parameters
ItemDescription
Senor Accuracy0.3%
Control PanelProgrammable LCD touch screen controller
Maximum specimen size( L*W*H ) about 2200*1200*1200mm
Seat Load0～200Kg(adjustable)
Back Load0～100Kg(adjustable)
Test Cyclic0～999, 999(adjustable)
Machine Weight400kg
Power1 phase, AC220V 50Hz
Air Pressure7kg/cm2
Design CriteriaEN4875
BIFMA5.1
