The SCS Labcoter®r gives university and R&D laboratories the best in Parylene coating technology, in a compact, portable system, enabling researchers to develop and design with the polymer Parylene.
Product Information

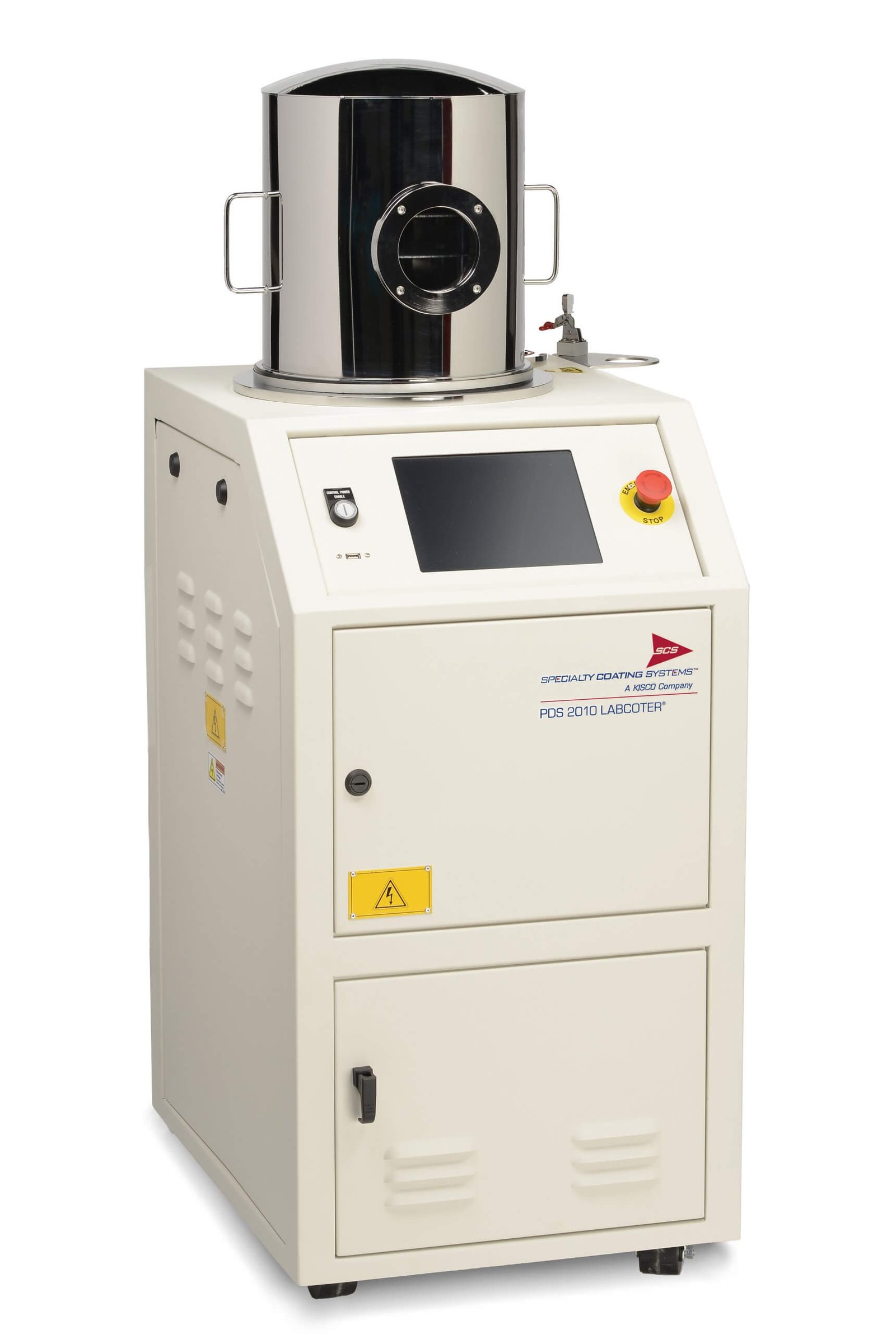

For Parylene laboratory research, applications development and testing, the SCS Labcoter® 3 Parylene deposition system (PDS 2010) performs reliable and repeatable application of SCS Parylene conformal coatings. Parylenes can be applied to components such as circuit boards, sensors, wafers, medical devices, MEMS and elastomeric components. SCS Labcoters are useful in research, development and repair environments.
The SCS Labcoter 3 features Windows®-based software with a touchscreen monitor. Built-in data logging and reporting allow deposition process parameters, including vaporizer temperatures and deposition. Built-in data logging and reporting allow deposition process parameters, including vaporizer temperatures and deposition chamber vacuum levels, to be easily exported.
System Features
Windows®-based software with touchscreen monitor
Interchangeable chamber modules
Choice of LN2 or mechanical chiller
Closed-loop monomer pressure control
Continuous process monitoring
Low-noise, direct drive vacuum pumps
Fixture rotation
Data logging and reporting
Chiller temperature monitoring
CE certified
Optional Features
Cold trap options
Manual-fill LN2 cold
Automatic-fill LN2 control
Mechanical chiller
Chamber options
Removable lid chamber
Reduced capacity chamber
Variable speed tumble coat chamber
Start-up kit
Standard fixture
Specifications
SCS Labcoter® 3
Dimensions (W x D x H) 19.5 x 24.0 x 50.5 in / 49.5 x 61 x 128.3 cm
Weight 200 lb / 91 kg
Chamber size 12 x 12 in / 30.5 x 30.5 cm (approximately 22 L capacity)
Power 120 VAC, 50/60 Hz, 1Ø, 20A or 220 VAC, 50/60 Hz, 1Ø, 10A
Dimer Capacity Up to 0.28 lbs / 125 gm
Internal Vacuum Pump 5.7 CFM (9.7 m3/h) at 50 Hz / 6.9 CFM (11.7 m3/h) at 60 Hz, 8.4 CFM (14.3 m3/h) at 50 Hz / 10 CFM (17 m3/h) at 60 Hz or 10 CFM Optional remote mount
Controls Software-driven temperature and pressure controls, fault alarm monitoring
Mechanical Chiller
Dimensions (W x D x H) 10 x 20 x 18.5 in / 25.4 x 50.8 x 47 cm
Power 110 VAC, 60 Hz, 10, 7A or 220 VAC, 50 Hz, 10, 5A
