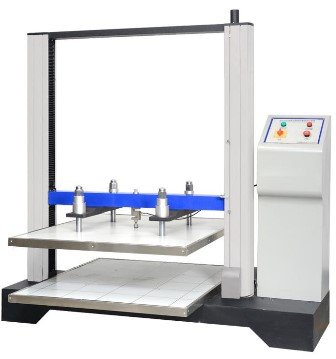

Box Compression Testing Machine

Corrugated Box Compression Tester is used for measuring the pressure strength of boxes, cartons, packaging containers, etc. for inspecting the pressure-resistance and strike-endurance of packing materials during transportation or carry. Also it can do hold pressure stacking test.
Operating Mode
  • The compressive strength test for a variety of corrugated boxes, packing boxes and other pieces of honeycomb panels crush most vigorously when
  • Stacking strength test for a variety of corrugated boxes, packing boxes and other pieces of honeycomb panels of stacking test
  • Pressure test standards for a variety of corrugated boxes, packing boxes and other pieces of honeycomb panels compliance testing
Specifications
  • For box compression testing
  • Carton test
The main Technical Parameters
ItemDescription
Max. Force2000 kg (20KN)
Load Cell1 Load cell for highest accuracy
Control SystemWindows 7, RS-232 interface
MotorPanasonic servo motor w/ DC variable speed drive system, high-percision mechanical ball screw rod
Force Readingkgf, lbf, N, KN, T etc
Load cell Resolution1/250,000
Load Precisionwithin ±0.25%
Parallelism of PlatensParallel within ±2.5mm
Effective Test Area1000x1200x1000mm
Test Speed10 ±3mm/min (0.01~200mm/min adjustable)
SoftwareTM 2101
Data DisplayLoad, Displacement, Speed, Loadig Rate and Elapsed Time
Safety FeaturesE-Stop
Over-load protection
Upper and lower limit switches
Load Sensor with automatic retreat
Features
  • Using a single-screen operation; do not need to switch the screen
  • With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
  • Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily
  • The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen
  • Choosing translational, comparative mode at the same time to make a number of curve data comparison
  • With a variety of measurement units, Measure In Imperial & Metric are switchable
  • With self-return & auto-correction function
  • With automatic magnification function, in order to achieve the most appropriate size of the graphics
  • With the user-defined Test methods; with experimental data analysis function
  • It can do test of compression, bending, pressure holding & fatigue
  • With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically

Standards
  • ISO2872
  • ISO2874
  • GB4857.4
