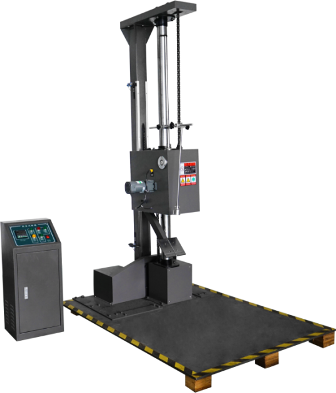

Drop Impact Test Machine For Packaging Boxis used to test the damage degree when the package is dropped, and test the impact resistance of the package during transportation, for example, to test the surface, edge and angle of the package through free-drop method.

Specifications

Test the damage degree when the package is dropped
CE certificated
Reasonable price

The main Technical Parameters

Item	Description
Drop height	300-1500mm (can be customized)
Display method	Digital display
Max. weight of sample	60kg (can be customized)
Max. size of sample	(LWH) 800800800mm
Drop panel area	40060010mm (material is Solid steel plate)
Control box dimension	(LWH) 3503501100mm
Deviation of drop horizon	Less than 1°

Operation of control chamber

Drop Impact Test Machine adopts electromagnet control system to control the dropping swing
Drop Impact Test Machine has automatic return function, electric dropping and electro-motion rising device and dropping test function
The testing height can be digital set up
Test standards: GB/T4857.5,ISO 2248,JIS Z0202,ASTM D5276

Features

Outside material: advanced paint coat
Display: LCD display
Power system: drive device(imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
Safety device:upper and lower limitation device, automatic off-power device if electricity leakage occurs
Accessories:electric wire 1 piece, guarantee certificate 1 piece, operational manual 1 piece
