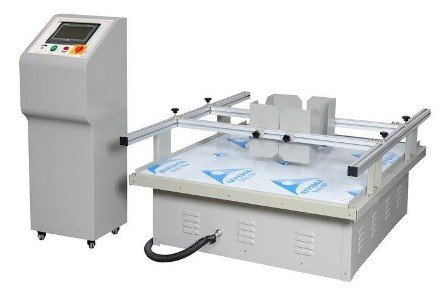

Vibration Testing Machine For Package Box

Simulation Transportation Vibration Testing machine which simulates a transporation environment, is applicable to the vibration test of toys, electronics, furnitures, gifts, ceramics, communications, packagings, equipment, computer and automobile components, etc.
Specifications

Simulation Transportation Vibration Tester

  • Up to EN71 ANSI,UL,ASTM ISTA
  • Apply to toy, electron, furniture, ceramic present
Main Technical Parameters
ItemDescription
Max. Test Load100 Kg
Frequency Range60-300 rpm
Amplitude Range25.4 mm (1 inch)
Vibration ModeRound trip
Simulation Speed25~40km/h
Woke Table Size1000×1200mm
Outside Dimension (L×W×H)1255×1070×660 mm
Power Capacity1 HP
Weight125 Kg
Environmental ConditionsTemperature: 5~40°c;
Related Humidity: < 85%
Speed ModeDC converter or AC Frequency Control
Power220V, 50 Hz
